# Set Game

The game is played by finding sets of three cards that are all the same, or all different, across four independent "facets" or "dimensions". These dimensions are: number, shape, color, and fill. Each of these dimensions has three possible values. Number may be: one, two, or three; color may be: red, green, or blue; shape may be: rectangle, X, or O; and fill may be: open, striped, or solid.

 Example sets: a SET same: [none] different: number, color, shape, fill a SET same: number, color, shape different: fill a SET same: number, shape different: color, fill NOT a set same: number, shape different: color wrong: fill To make it a set, one of the open fills needs to be solid, or the striped fill needs to be open. a SET same: shape different: color, number, fill NOT a set same: shape, number different: fill wrong: color To make it a set, one of the red colors needs to be blue, or the green color needs to be red.

How many cards would you expect in a Set deck?

How would you uniquely identify each card?

Can you "compute" the value of each of the four dimensions, or, does it need to be "stored"?
```public static void compute_components( int card, int[] components ) {
components[0] = card % 3;
components[1] = card % 9 / 3;
components[2] = card % 27 / 9;
components[3] = card / 27;
}
```
What kind of algorithm will give us a decision on whether 3 cards constitute a set?

```card1   0	0	1	1	2	2	0	0	1	2
card2   0	1	1	2	2	0	1	0	1	2
card3   1	1	2	2	0	0	2	0	1	2
set?	no	no	no	no	no	no	yes	yes	yes	yes
```
Above are all combinations of three 3-valued variables. Is a pattern or source of leverage evident?

Here is an implementation ...

```boolean is_a_set( int[] selected_cards ) {
int[][] cards_and_components = new int[3][4];
for (int i=0; i < 3; i++)
compute_components( selected_cards[i], cards_and_components[i] );
for (int sum, i=0; i < 4; i++) {
sum = 0;
for (int j=0; j < 3; j++)
sum += cards_and_components[j][i];
// If any of the 4 sums is not evenly divisible by 3, then the 3 cards do not form a set
if (sum % 3 != 0)
return false;
}
return true;
}
```
What kind of algorithm is necessary and sufficient to compute all the sets present in an array of 12 cards?

What is the equation for "all combinations of X things taken Y at a time"?

Here is an implementation ...

```int number_of_sets = 0;
for (int i=0;   i < cards_showing.length - 2; i++)
for (int j=i+1; j < cards_showing.length - 1; j++)
for (int k=j+1; k < cards_showing.length;     k++) {
test_set[0] = cards_showing[i];
test_set[1] = cards_showing[j];
test_set[2] = cards_showing[k];
if (is_a_set( test_set )) {
number_of_sets++;
} }
return number_of_sets;
```

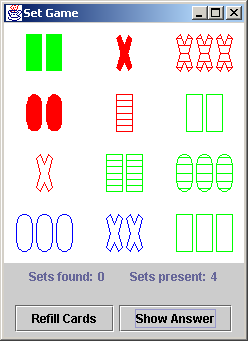

How about supplying the "view" component (Java GUI code) and having the student design the "model" component (game engine)?

```

// incremental examples of loops, and growing to an algorithm for
//   "all combinations of 12 things taken 3 at a time"

#include <iostream>
#include <string>
#include <sstream>
using std::cout;
using std::string;
using std::stringstream;

#if 0
// "for" loop, "+=" operator, one-line block of code doesn't need "{ }"
int main( void ) {
for (int number = 1; number < 11; number += 1)
cout << number << ' ';
cout << '\n';
}
// 1 2 3 4 5 6 7 8 9 10

// one loop inside another loop, accessing arrays
int main( void ) {
int  nums[] =  { 1,2,3,4,5 };
char chars[] = { 'a','b','c','d','e' };
for (int i=0; i < 5; ++i) {
for (int j=0; j < 5; ++j)
cout << nums[i] << chars[j] << ' ';
cout << '\n';
}  }
// 1a 1b 1c 1d 1e
// 2a 2b 2c 2d 2e
// 3a 3b 3c 3d 3e
// 4a 4b 4c 4d 4e
// 5a 5b 5c 5d 5e

// defining and loading a 2-D array, using "integer division" that produces 0
int main( void ) {
int matrix[4][4];
for (int i=1; i <= 4; ++i)
for (int j=1; j <= 4; ++j)
// if i < j then 0, if j < i then 0, if i == j then 1
matrix[i-1][j-1] = (i/j) * (j/i);
for (int i=0; i < 4; ++i) {
for (int j=0; j < 4; ++j)
cout << matrix[i][j] << ' ';
cout << '\n';
} }
// 1 0 0 0
// 0 1 0 0
// 0 0 1 0
// 0 0 0 1

// each inner loop is "sized" by its outer loop
int main() {
cout << "all combinations of 5 things taken 3 at a time\n";
for (int i=0;       i < 5 - 2; i++)
for (int j=i+1;   j < 5 - 1; j++)
for (int k=j+1; k < 5;     k++)
cout << i << j << k << "  ";
cout << '\n';
}
// all combinations of 5 things taken 3 at a time ... 5 * 4 * 3 / 3 * 2 * 1
// 012  013  014  023  024  034  123  124  134  234

// all combinations of 12 things taken 3 at a time ... 12 * 11 * 10 / 3 * 2 * 1
int main( void ) {                                  // equals 220
int count = 0, lines = 0;
char cards[] = { '1','2','3','4','5','6','7','8','9','a','b','c' };
for (int i=0;   i < 12 - 2; ++i)
for (int j=i+1; j < 12 - 1; ++j) {
for (int k=j+1; k < 12;     ++k) {
cout << cards[i] << cards[j] << cards[k] << ' ';
count += 1;
}
cout << '\n';
lines += 1;
}
cout << "count is " << count << ", lines is " << lines << '\n';
}

// 123 124 125 126 127 128 129 12a 12b 12c
// 134 135 136 137 138 139 13a 13b 13c
// 145 146 147 148 149 14a 14b 14c
// 156 157 158 159 15a 15b 15c
// 167 168 169 16a 16b 16c
// 178 179 17a 17b 17c
// 189 18a 18b 18c
// 19a 19b 19c
// 1ab 1ac
// 1bc
// 234 235 236 237 238 239 23a 23b 23c
// 245 246 247 248 249 24a 24b 24c
// ...
// 89a 89b 89c
// 8ab 8ac
// 8bc
// 9ab 9ac
// 9bc
// abc
// count is 220, lines is 55
#endif

// all permutations of the combinations of 5 things taken 3 at a time
void permute(string& str, int l, int r);
void swap( char& one, char& two );
int count = 0;

int main( void ) {
cout << "all permutations of 5 things taken 3 at a time\n";
cout << "  (a permutation is an ordered combination)\n";
for (int i=0;       i < 5 - 2; i++)
for (int j=i+1;   j < 5 - 1; j++)
for (int k=j+1; k < 5;     k++) {
stringstream ss;
ss << i << j << k;
string str = ss.str();
permute( str, 0, str.size() - 1 );
cout << '\n';
}
cout << "count is " << count << '\n';
}

// all permutations of 5 things taken 3 at a time ... 5 * 4 * 3
//   (a permutation is an ordered combination)
// 012 021 102 120 210 201
// 013 031 103 130 310 301
// 014 041 104 140 410 401
// 023 032 203 230 320 302
// 024 042 204 240 420 402
// 034 043 304 340 430 403
// 123 132 213 231 321 312
// 124 142 214 241 421 412
// 134 143 314 341 431 413
// 234 243 324 342 432 423
// count is 60

// https://www.geeksforgeeks.org/write-a-c-program-to-print-all-permutations-of-a-given-string/

void permute(string& str, int l, int r)  {
if (l == r) {
cout << str << ' ';
count += 1;
} else
for (int i = l; i <= r; i++) {
swap( str[l], str[i] );
//cout << 'p' << l << i << ' ';
permute( str, l + 1, r );
// backtrack
//cout << "b ";
swap( str[l], str[i] );
}
}
void swap( char& one, char& two ) {
char temp;  temp = one;  one = two;  two = temp;
}

// A loop can often be used in place of many "if/else" statements.

// Many "if" statements in the 1960s language PL/I

DATES:  PROC OPTIONS (MAIN);
IF IDATE < 1 | IDATE > 366 | IYEAR < 0 THEN
RETURN;
IF IDATE <= 31 THEN GO TO JAN;
L = 1;
I = IYEAR/400;
IF I = IYEAR/400 THEN GO TO LEAP;
I = IYEAR/100;
IF I = IYEAR/100 THEN GO TO NOLEAP;
I = IYEAR/4;
IF I = IYEAR/4 THEN GO TO LEAP;
NOLEAP: L=0;
IF IDATE > 365 THEN RETURN;
LEAP:  IF IDATE > 181 + L THEN GO TO G181;
IF IDATE > 90 + L THEN GO TO G90;
IF IDATE > 59 + L THEN GO TO G59;
MONTH = 2; IDAY = IDATE - 31; GO TO OUT;
G59:  MONTH = 3; IDAY = IDATE - (59 + L); GO TO OUT;
G90:  IF IDATE > 120 + L THEN GO TO G120;
MONTH = 4; IDAY = IDATE - (90 + L); GO TO OUT;
G120:  IF IDATE > 151 + L THEN GO TO G151;
MONTH = 5; IDAY = IDATE - (120 + L); GO TO OUT;
G151:  MONTH = 6; IDAY = IDATE - (151 + L); GO TO OUT;
G181:  IF IDATE > 273 + L THEN GO TO G273;
IF IDATE > 243 + L THEN GO TO G243;
IF IDATE > 212 + L THEN GO TO G212;
MONTH = 7; IDAY = IDATE - (181 + L); GO TO OUT;
G212:  MONTH = 8; IDAY = IDATE - (212 + L); GO TO OUT;
G243:  MONTH = 9; IDAY = IDATE - (243 + L); GO TO OUT;
G273:  IF IDATE > 334 + L THEN GO TO G334;
IF IDATE > 304 + L THEN GO TO G304;
MONTH = 10; IDAY = IDATE - (273 + L); GO TO OUT;
G304:  MONTH = 11; IDAY = IDATE - (304 + L); GO TO OUT;
G334:  MONTH = 12; IDAY = IDATE - (334 + L); GO TO OUT;
OUT:    PUT DATA (MONTH,IDAY,IYEAR) SKIP;
JAN:    MONTH=1; IDAY=IDATE; GOTO OUT;
END DATES;

// Many "if" stmts replaced with: days_per_month_table data structure, and a loop

String convert_julian( int year, int julian ) {
int[][] days_per_month_table = { {0,31,28,31,30,31,30,31,31,30,31,30,31},
{0,31,29,31,30,31,30,31,31,30,31,30,31} };
int leap = (year % 400 == 0 || year % 4 == 0 && year % 100 != 0) ? 1 : 0;
int i;
for (i=1; julian > days_per_month_table[leap][i]; i++)
julian -= days_per_month_table[leap][i];
int yr = year - (year/100 * 100);
return fill(i) + '/' + fill(julian) + '/' + fill(yr);
}

System.out.println( convert_julian( 1900,  60 ) );   // 03/01/00
System.out.println( convert_julian( 2000,  60 ) );   // 02/29/00
System.out.println( convert_julian( 2002,  60 ) );   // 03/01/02
System.out.println( convert_julian( 2004,  60 ) );   // 02/29/04
System.out.println( convert_julian( 1900, 365 ) );   // 12/31/00
System.out.println( convert_julian( 2000, 365 ) );   // 12/30/00
System.out.println( convert_julian( 2002, 365 ) );   // 12/31/02
System.out.println( convert_julian( 2004, 365 ) );   // 12/30/04

// the card game called Set: how to decide if 3 cards are a set
// 2 implementations: 4 levels of "if" statements, or, a loop and ingenuity

struct Card { int dimensions[4]; };  // 0-shape, 1-number, 2-color, 3-fill

// An implementation using 4 levels of "if" statements

#include
using std::set;
bool is_a_set( Card one, Card two, Card three ) {
// the set data structure only stores unique values
//   (if values 1,1,2 are inserted, then values 1,2 are remembered)
set accumulate[4];
accumulate[0].insert( one.dimensions[0] );
accumulate[0].insert( two.dimensions[0] );
accumulate[0].insert( three.dimensions[0] );
accumulate[1].insert( one.dimensions[1] );
accumulate[1].insert( two.dimensions[1] );
accumulate[1].insert( three.dimensions[1] );
accumulate[2].insert( one.dimensions[2] );
accumulate[2].insert( two.dimensions[2] );
accumulate[2].insert( three.dimensions[2] );
accumulate[3].insert( one.dimensions[3] );
accumulate[3].insert( two.dimensions[3] );
accumulate[3].insert( three.dimensions[3] );
// success is: each of the 4 dimensions across all 3 cards must be:
//               all the same value, or all different values
if (accumulate[0].size() == 1  ||  accumulate[0].size() == 3)
if (accumulate[1].size() == 1  ||  accumulate[1].size() == 3)
if (accumulate[2].size() == 1  ||  accumulate[2].size() == 3)
if (accumulate[3].size() == 1  ||  accumulate[3].size() == 3)
return true;
return false;
}

// An implementation using a loop and an ingenious algorithm

// card1   0   0   1   1   2   2   0   0   1   2
// card2   0   1   1   2   2   0   1   0   1   2
// card3   1   1   2   2   0   0   2   0   1   2
// sum     1   2   4   5   4   2   3   0   3   6
// % 3     1   2   1   2   1   2   0   0   0   0
// set?   no  no  no  no  no  no  yes yes yes yes
// algorithm: use the modulus operator to "compute" the desired decision

bool is_a_set( Card one, Card two, Card three ) {
// This loop replaces the 4 "if" statements in the previous implementation
for (int i=0; i < 4; ++i)
// this "algorithm" demonstrates insight and leverage
// if any dimension fails the set criteria, then return false immediately
if ((one.dimensions[i] + two.dimensions[i] + three.dimensions[i]) % 3 != 0)
return false;
// only return true if all 4 dimensions satisfy the criteria to be a set
return true;
}

// Generate and evaluate all combinations of 12 cards taken 3 at a time
int compute_sets_present( Card cards_showing[], string& answer_str ) {
int number_of_sets = 0;
for (int i=0;   i < 12 - 2; i++)
for (int j=i+1; j < 12 - 1; j++)
for (int k=j+1; k < 12;     k++)
if (is_a_set( cards_showing[i],cards_showing[j],cards_showing[k] )) {
number_of_sets++;
answer << (i+1) << ' ';
answer << (j+1) << ' ';
answer << (k+1) << "   ";
}
return number_of_sets;
}

void initialize_card( int index, Card& card ) {
// use modulus operator and integer division to compute the card's 4 dimensions
card.dimensions[0] = index % 3;
card.dimensions[1] = index % 9 / 3;
card.dimensions[2] = index % 27 / 9;
card.dimensions[3] = index / 27;
}

int main( void ) {
Card  cards[81];
for (int i=0; i < 81; ++i)
initialize_card( i, cards[i] );
