Flyweight

Intent

Problem

Designing objects down to the lowest levels of system "granularity" provides optimal flexibility, but can be unacceptably expensive in terms of performance and memory usage.

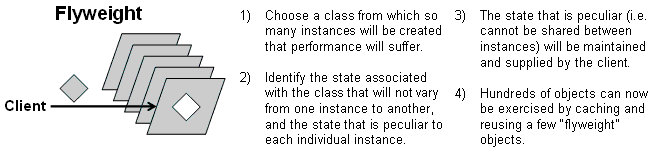

Structure Summary

Structure category:
miscellaneous
Similar patterns:   Abstract Factory   Singleton   Template Method

Discussion

The Flyweight pattern describes how to share objects to allow their use at fine granularities without prohibitive cost. Each "flyweight" object is divided into two pieces: the state-dependent (extrinsic) part, and the state-independent (intrinsic) part. Intrinsic state is stored (shared) in the Flyweight object. Extrinsic state is stored or computed by client objects, and passed to the Flyweight when its operations are invoked.

An illustration of this approach would be Motif widgets that have been re-engineered as light-weight gadgets. Whereas widgets are "intelligent" enough to stand on their own; gadgets exist in a dependent relationship with their parent layout manager widget. Each layout manager provides context-dependent event handling, real estate management, and resource services to its flyweight gadgets, and each gadget is only responsible for context-independent state and behavior.

Structure

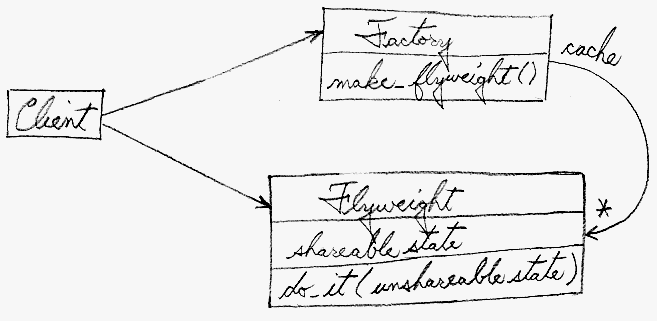

Flyweights are stored in a Factory's repository. The client restrains herself from creating Flyweights directly, and requests them from the Factory. Each Flyweight cannot stand on its own. Any attributes that would make sharing impossible must be supplied by the client whenever a request is made of the Flyweight. If the context lends itself to "economy of scale" (i.e. the client can easily compute or look-up the necessary attributes), then the Flyweight pattern offers appropriate leverage.

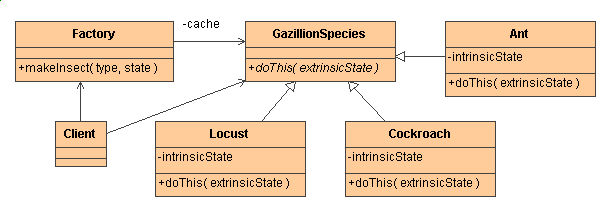

The Ant, Locust, and Cockroach classes can be "light-weight" because their instance-specific state has been de-encapsulated, or externalized, and must be supplied by the client.

Example

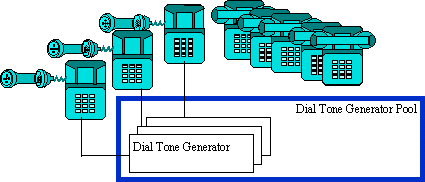

The Flyweight uses sharing to support large numbers of objects efficiently. The public switched telephone network is an example of a Flyweight. There are several resources such as dial tone generators, ringing generators, and digit receivers that must be shared between all subscribers. A subscriber is unaware of how many resources are in the pool when he or she lifts the handset to make a call. All that matters to subscribers is that a dial tone is provided, digits are received, and the call is completed. [Michael Duell, "Non-software examples of software design patterns", Object Magazine, Jul 97, p54]

Check list

  1. Ensure that object overhead is an issue needing attention, and, the client of the class is able and willing to absorb responsibility realignment.
  2. Divide the target class's state into: shareable (intrinsic) state, and non-shareable (extrinsic) state.
  3. Remove the non-shareable state from the class attributes, and add it the calling argument list of affected methods.
  4. Create a Factory that can cache and reuse existing class instances.
  5. The client must use the Factory instead of the new operator to request objects.
  6. The client (or a third party) must look-up or compute the non-shareable state, and supply that state to class methods.

Before and after

BeforeAfter
// Trying to use objects at very low levels of
// granularity is nice, but the overhead may be
// prohibitive.  Flyweight suggests removing the
// non-shareable state from the class, and having
// the client supply it when methods are called.
// This places more responsibility on the client,
// but, considerably fewer instances of the Fly-
// weight class are now created.  Sharing of these
// instances is facilitated by introducing a Fac-
// tory class that maintains a "cache" of existing
// Flyweights.
//
// In this example, the "X" state is considered
// shareable (within each row anyways), and the
// "Y" state has been externalized (it is sup-
// plied by the client when report() is called).

class Gazillion {
public:
   Gazillion() {
      m_value_one = s_num / Y;
      m_value_two = s_num % Y;
      ++s_num;
   }
   void report() {
      cout << m_value_one << m_value_two << ' ';
   }
   static int X, Y;
private:
   int  m_value_one;
   int  m_value_two;
   static int s_num;
};

int Gazillion::X = 6, Gazillion::Y = 10,
    Gazillion::s_num = 0;

int main( void ) {
   Gazillion  matrix[Gazillion::X][Gazillion::Y];
   for (int i=0; i < Gazillion::X; ++i) {
      for (int j=0; j < Gazillion::Y; ++j)
         matrix[i][j].report();
      cout << '\n';
}  }

// 00 01 02 03 04 05 06 07 08 09
// 10 11 12 13 14 15 16 17 18 19
// 20 21 22 23 24 25 26 27 28 29
// 30 31 32 33 34 35 36 37 38 39
// 40 41 42 43 44 45 46 47 48 49
// 50 51 52 53 54 55 56 57 58 59

class Gazillion {
public:
   Gazillion( int value_one ) {
      m_value_one = value_one;
      cout << "ctor: "<< m_value_one << '\n';
   }
   ~Gazillion() {
      cout << m_value_one << ' ';
   }
   void report( int value_two ) {
      cout << m_value_one << value_two << ' ';
   }
private:
   int  m_value_one;
};

class Factory {
public:
   static Gazillion* get_fly( int in ) {
      if ( ! s_pool[in])
         s_pool[in] = new Gazillion( in );
      return s_pool[in];
   }
   static void clean_up() {
      cout << "dtors: ";
      for (int i=0; i < X; ++i)
         if (s_pool[i])
            delete s_pool[i];
      cout << '\n';
   }
   static int X, Y;
private:
   static Gazillion* s_pool[];
};

int Factory::X = 6, Factory::Y = 10;
Gazillion* Factory::s_pool[] = { 0,0,0,0,0,0 };

int main( void ) {
   for (int i=0; i < Factory::X; ++i) {
      for (int j=0; j < Factory::Y; ++j)
         Factory::get_fly(i)->report(j);
      cout << '\n';
   }
   Factory::clean_up();
}

// ctor: 0
// 00 01 02 03 04 05 06 07 08 09
// ctor: 1
// 10 11 12 13 14 15 16 17 18 19
// ctor: 2
// 20 21 22 23 24 25 26 27 28 29
// ctor: 3
// 30 31 32 33 34 35 36 37 38 39
// ctor: 4
// 40 41 42 43 44 45 46 47 48 49
// ctor: 5
// 50 51 52 53 54 55 56 57 58 59
// dtors: 0 1 2 3 4 5

Rules of thumb

Whereas Flyweight shows how to make lots of little objects, Facade shows how to make a single object represent an entire subsystem. [GoF, p138]

Flyweight is often combined with Composite to implement shared leaf nodes. [GoF, p206]

Terminal symbols within Interpreter's abstract syntax tree can be shared with Flyweight. [GoF. p255]

Flyweight explains when and how State objects can be shared. [GoF, p313]
