Decorator

Intent

• Attach additional responsibilities to an object dynamically. Decorators provide a flexible alternative to subclassing for extending functionality. [GoF, p175]
• Client-specified embellishment of a core object by recursively wrapping it.
• Wrapping a gift, putting it in a box, and wrapping the box.

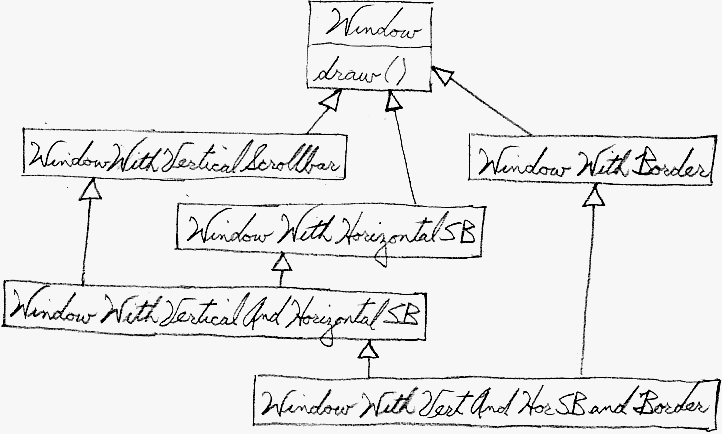

Problem

Structure Summary

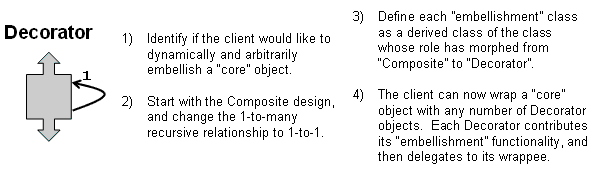

Structure category:

Discussion

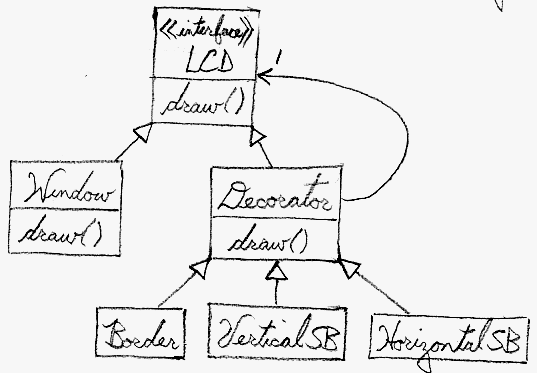

But the Decorator pattern suggests giving the client the ability to specify whatever combination of "features" is desired.

   Widget*  aWidget = new BorderDecorator(
                        new HorizontalScrollBarDecorator(
                          new VerticalScrollBarDecorator(
                            new Window( 80, 24 ))));
   aWidget->draw();

Another example of cascading (or chaining) features together to produce a custom object might look like ...

   Stream*  aStream = new CompressingStream(
                        new ASCII7Stream(
                          new FileStream( "fileName.dat" )));
   aStream->putString( "Hello world" );

Note that this pattern allows responsibilities to be added to an object, not methods to an object's interface. The interface presented to the client must remain constant as successive layers are specified.

Also note that the core object's identity has now been "hidden" inside of a decorator object. Trying to access the core object directly is now a problem.

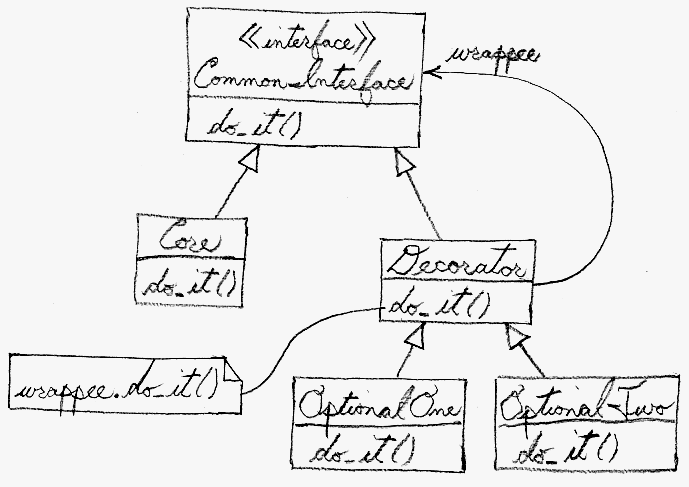

Structure

Example

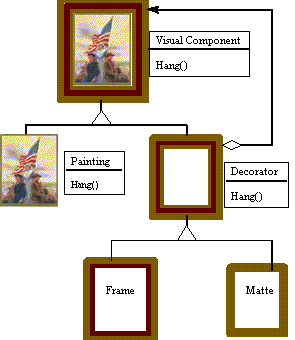

Although paintings can be hung on a wall with or without frames, frames are often added, and it is the frame which is actually hung on the wall. Prior to hanging, the paintings may be matted and framed, with the painting, matting, and frame forming a single visual component.

Check list

1. Ensure the context is: a single core (or non-optional) component, several optional embellishments or wrappers, and an interface that is common to all.
2. Create a "Lowest Common Denominator" interface that makes all classes interchangeable.
3. Create a second level base class (Decorator) to support the optional wrapper classes.
4. The Core class and Decorator class inherit from the LCD interface.
5. The Decorator class declares a composition relationship to the LCD interface, and this data member is initialized in its constructor.
6. The Decorator class delegates to the LCD object.
7. Define a Decorator derived class for each optional embellishment.
8. Decorator derived classes implement their wrapper functionality - and - delegate to the Decorator base class.
9. The client configures the type and ordering of Core and Decorator objects.

Before and after

// Inheritance run amok

class A {
public:
   virtual void do_it() { cout << 'A'; }
};

class AwithX : public A {
public:
   /*virtual*/ void do_it() {
      A::do_it();
      do_X();
   };
private:
   void do_X() { cout << 'X'; }
};

class AwithY : public A {
public:
   /*virtual*/ void do_it() {
      A::do_it();
      do_Y();
   }
protected:
   void do_Y() { cout << 'Y'; }
};

class AwithZ : public A {
public:
   /*virtual*/ void do_it() {
      A::do_it();
      do_Z();
   }
protected:
   void do_Z() { cout << 'Z'; }
};

class AwithXY : public AwithX, public AwithY {
public:
   /*virtual*/ void do_it() {
      AwithX::do_it();
      AwithY::do_Y();
   }
};

class AwithXYZ : public AwithX, public AwithY,
                 public AwithZ {
public:
   /*virtual*/ void do_it() {
      AwithX::do_it();
      AwithY::do_Y();
      AwithZ::do_Z();
   }
};

int main( void ) {
   AwithX    anX;
   AwithXY   anXY;
   AwithXYZ  anXYZ;
   anX.do_it();    cout << '\n';
   anXY.do_it();   cout << '\n';
   anXYZ.do_it();  cout << '\n';
}

// AX
// AXY
// AXYZ

// Replacing inheritance with wrapping-delegation
//
// Discussion.  Use aggregation instead of inheritance to
// implement embellishments to a "core" object.  Client
// can dynamically compose permutations, instead of the
// architect statically wielding multiple inheritance.

class I {
public:
   virtual ~I() { }
   virtual void do_it() = 0;
};

class A : public I {
public:
   ~A() { cout << "A dtor" << '\n'; }
   /*virtual*/ void do_it() { cout << 'A'; }
};

class D : public I {
public:
   D( I* inner )            { m_wrappee = inner; }
   ~D()                     { delete m_wrappee; }
   /*virtual*/ void do_it() { m_wrappee->do_it(); }
private:
   I*  m_wrappee;
};

class X : public D {
public:
   X( I* core ) : D( core ) { }
   ~X() { cout << "X dtor" << "   "; }
   /*virtual*/ void do_it() {
      D::do_it();
      cout << 'X';
   }
};

class Y : public D {
public:
   Y( I* core ) : D( core ) { }
   ~Y() { cout << "Y dtor" << "   "; }
   /*virtual*/ void do_it() {
      D::do_it();
      cout << 'Y';
   }
};

class Z : public D {
public:
   Z( I* core ) : D( core ) { }
   ~Z() { cout << "Z dtor" << "   "; }
   /*virtual*/ void do_it() {
      D::do_it();
      cout << 'Z';
   }
};

int main( void ) {
   I* anX = new X( new A );
   I* anXY = new Y( new X( new A ) );
   I* anXYZ = new Z( new Y( new X( new A ) ) );
   anX->do_it();    cout << '\n';
   anXY->do_it();   cout << '\n';
   anXYZ->do_it();  cout << '\n';
   delete anX;   delete anXY;   delete anXYZ;
}

// AX
// AXY
// AXYZ
// X dtor   A dtor
// Y dtor   X dtor   A dtor
// Z dtor   Y dtor   X dtor   A dtor

Rules of thumb

Adapter changes an object's interface, Decorator enhances an object's responsibilities. Decorator is thus more transparent to the client. As a consequence, Decorator supports recursive composition, which isn't possible with pure Adapters. [GoF, p149]

Composite and Decorator have similar structure diagrams, reflecting the fact that both rely on recursive composition to organize an open-ended number of objects. [GoF, p219]

A Decorator can be viewed as a degenerate Composite with only one component. However, a Decorator adds additional responsibilities - it isn't intended for object aggregation. [GoF, p184]

Decorator is designed to let you add responsibilities to objects without subclassing. Composite's focus is not on embellishment but on representation. These intents are distinct but complementary. Consequently, Composite and Decorator are often used in concert. [GoF, p220]

Composite could use Chain of Responsibility to let components access global properties through their parent. It could also use Decorator to override these properties on parts of the composition. [GoF, p349]

Decorator and Proxy have different purposes but similar structures. Both describe how to provide a level of indirection to another object, and the implementations keep a reference to the object to which they forward requests. [GoF, p220]

Decorator lets you change the skin of an object. Strategy lets you change the guts. [GoF, p184]
